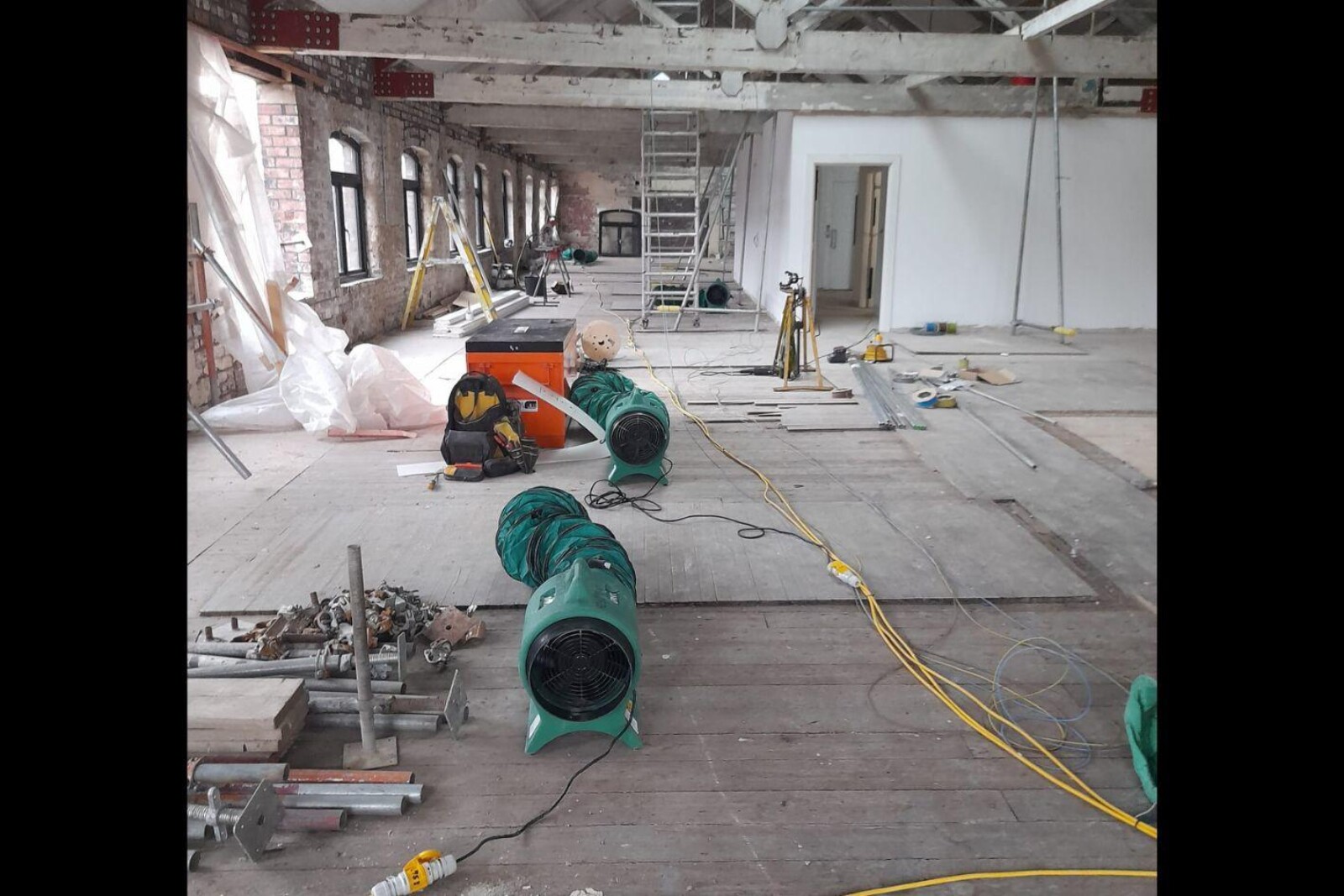

Two VENTEX® Axial 300P Fans one in front of the other on boarded floor, in a room with bare brickwork whilst renovation work takes place

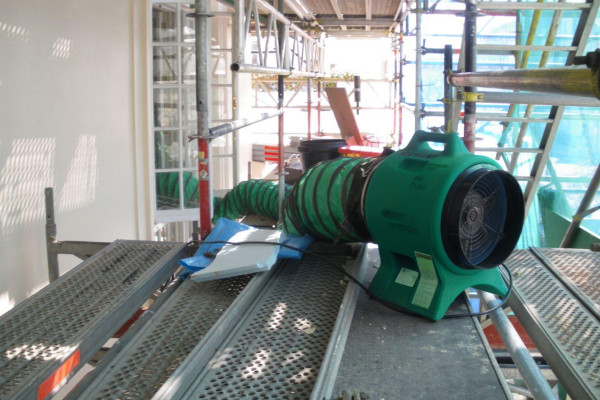

A VENTEX® Axial 300P Fan on top of metal scaffolding with ducting entering a nearby window

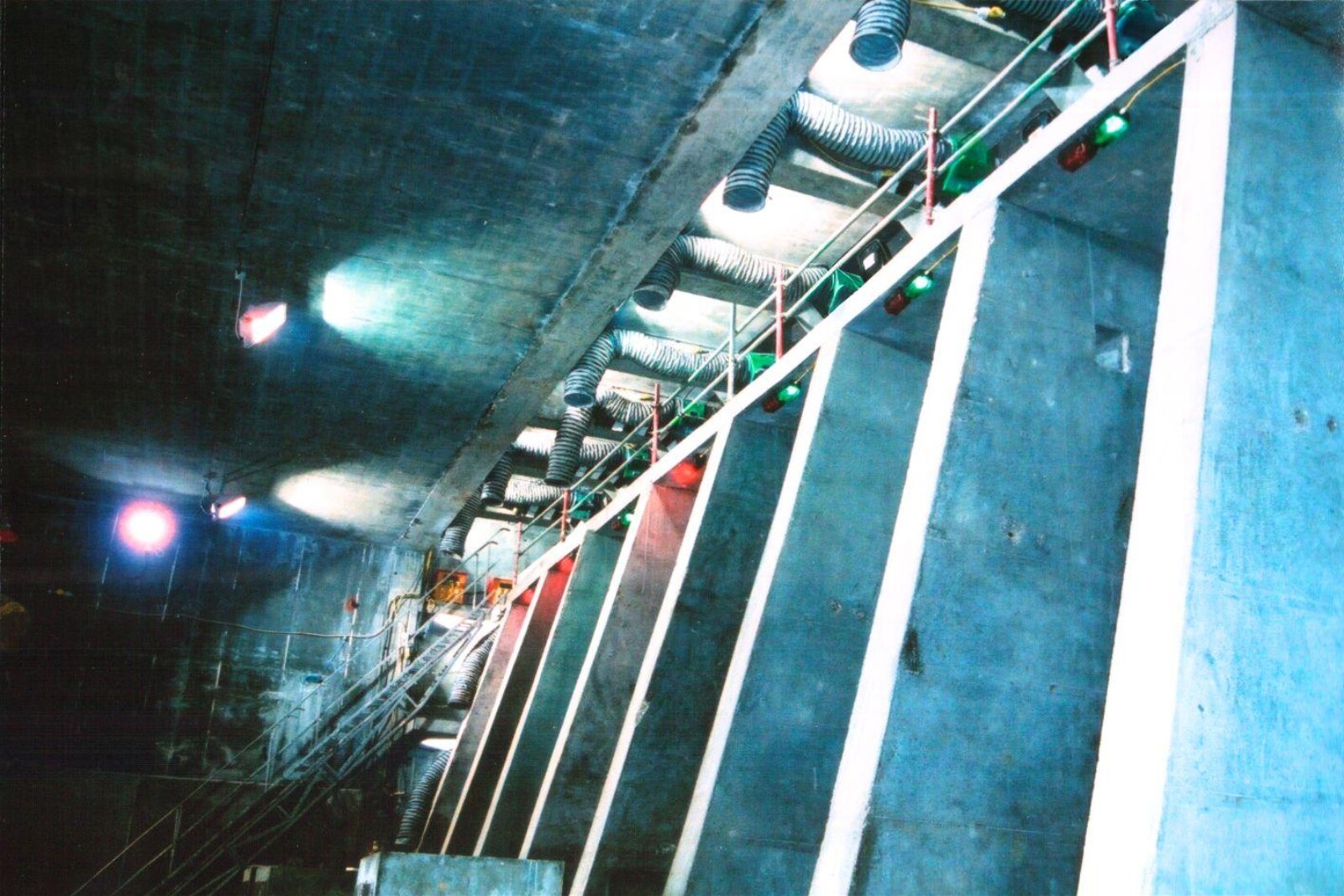

A row of VENTEX® Axial 300P Fans at the top of a large conrete wall with ducting hanging down at each pillar and a staircase at the far end

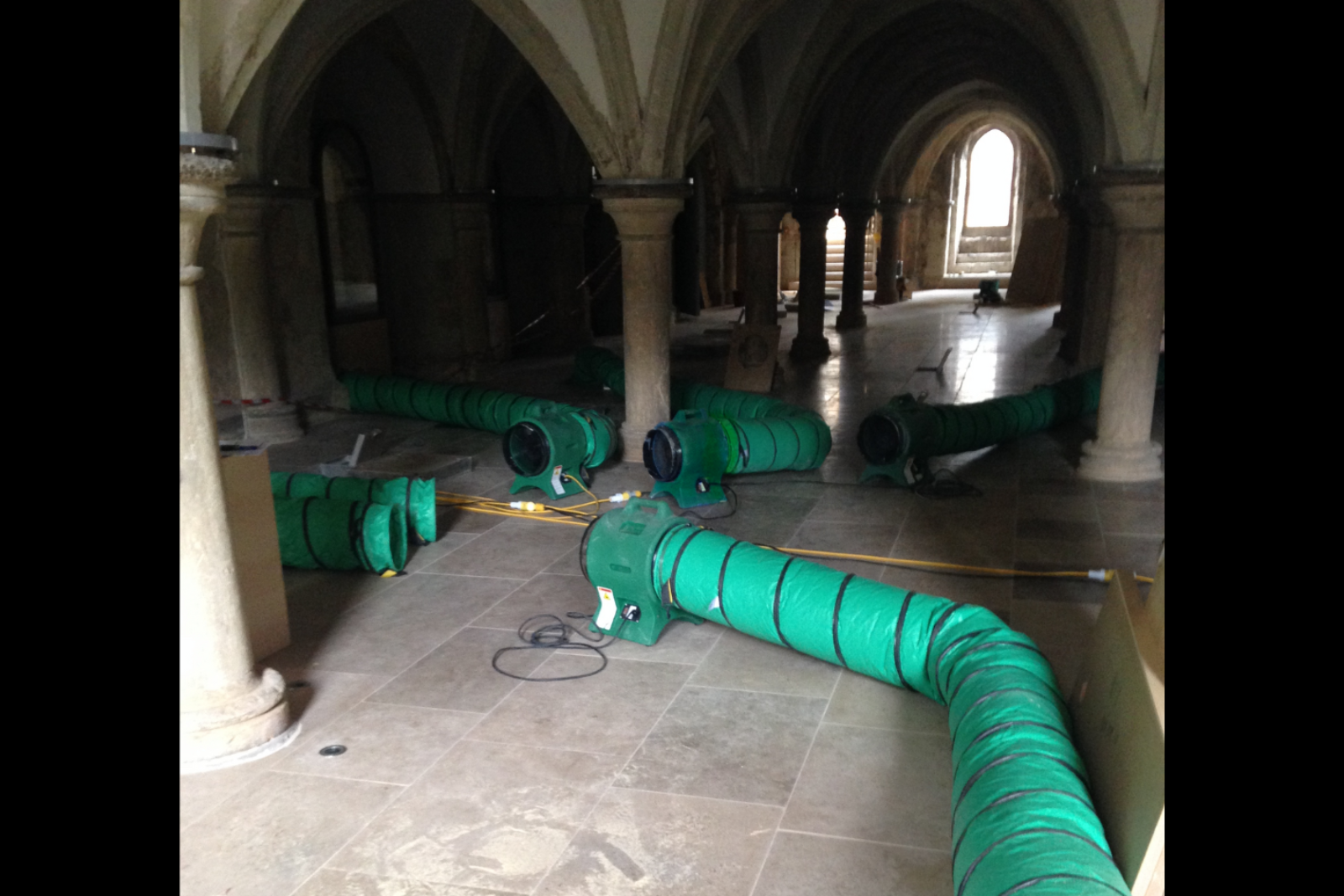

4 VENTEX® Axial 300P Fans directing air to two rows of ducting on the floor of a water storage tank

BENEFITS

Reliable Airflow Support for High-Demand Worksites

Effective ventilation is critical when working in enclosed or heat-intensive environments. The VENTEX® 1000m Axial Fan delivers high-capacity airflow to help improve air circulation, manage temperatures, and support safer working conditions in areas where airflow cannot be left to chance.

Designed for tough site use and continuous performance, this fan is well suited to projects requiring strong, directed ventilation over extended distances.

High-Volume Air Movement Performance

Delivers airflow up to 61,200m³/hr, supporting rapid ventilation in large or enclosed work zones.

Built for Confined Space and Tunnel Ventilation

Ideal for construction, tunnelling, or restricted environments where controlled airflow is essential.

Heavy-Duty Mobile Steel Frame

Mounted on a wheeled base for easy on-site positioning, with a rugged steel structure for industrial conditions.

Large Diameter Ducting Compatibility

Designed for use with 1010mm intake and outlet ducting, allowing effective airflow direction and extraction.

Axial Fans

Ventilation

VENTEX® 1000m Axial Fan

High-Volume Portable Ventilation for Tunnelling, Construction and Confined Work Zones

The VENTEX® 1000m Axial Fan is a heavy-duty airflow solution engineered to deliver powerful, consistent ventilation in demanding industrial environments.

Built with a robust steel frame and high-efficiency impeller, the 1000m provides reliable air movement wherever cooling, fume control or fresh-air supply is essential. With a wheeled base for easy positioning, it is ideal for construction sites, tunnelling works and confined space applications where performance and mobility matters.

Talk to an Expert

Add To Quote Download Spec Sheet

BENEFITS

Reliable Airflow Support for High-Demand Worksites

Designed for tough site use and continuous performance, this fan is well suited to projects requiring strong, directed ventilation over extended distances.

High-Volume Air Movement Performance

Delivers airflow up to 61,200m³/hr, supporting rapid ventilation in large or enclosed work zones.

Built for Confined Space and Tunnel Ventilation

Ideal for construction, tunnelling, or restricted environments where controlled airflow is essential.

Heavy-Duty Mobile Steel Frame

Mounted on a wheeled base for easy on-site positioning, with a rugged steel structure for industrial conditions.

Large Diameter Ducting Compatibility

Designed for use with 1010mm intake and outlet ducting, allowing effective airflow direction and extraction.

Axial fans

Key Features and Applications

The VENTEX® 1000m Axial Fan is designed to provide dependable ventilation and cooling airflow across challenging worksites.

With a high-output axial impeller and durable construction, the unit supports air supply and extraction requirements in environments where natural airflow is limited. Its strong mobility features and high airflow capacity make it a practical solution for both temporary and long-duration ventilation needs.

Powered by a 415V three-phase 5.5kW motor, the 1000m is suited to industrial projects requiring serious ventilation capability.

- Heavy-duty axial fan for site ventilation and cooling
- Maximum airflow capacity up to 61,200m³/hr
- Compatible with 1010mm ducting (intake and outlet)
- High-efficiency impeller for strong, consistent performance
- Robust steel frame for demanding environments
- Wheeled base for easy manoeuvring and placement
- 415V three-phase power supply
- Requires 32A socket connection
- Motor size: 5.5kW
- Industrial duty design for construction and tunnelling use
- Ventilation support for tunnelling and underground works
- Fresh air circulation in confined or enclosed environments
- Cooling airflow for heat-intensive industrial zones
- Construction sites requiring forced ventilation
- Temporary air movement for shutdowns, maintenance or access works
- Projects where strong ducted airflow is essential
